Quick Answer
A Pinnacle Series tool link that opens a file or document is created by opening the Add a New Tool window from a Document or Workflow in the Administration Portal, selecting Open File under Type, browsing to the file or document, and then inserting the tool link into the asset description.
What This Article Helps With
This article explains how to create a tool link that is associated with a file or document, and how to embed that tool link within the context of an asset description. It applies to Content Managers.
How to Add a Tool Link That Opens a File or Document
Start by opening the window used to create the tool link. The steps depend on whether the tool link is being added to a Document or a Workflow.
Open the tool window from a Document:
- In the Administration Portal, select the Content tab.
- Select the Add New button.
- Choose the Document option.
- Title the Document, and make the other Overview and Details selections.
- Select Save.
- Select Edit.
- In the Document Editor tool bar above the blank document page, select the Tool Link drop-down.
- Select Create New Tool Link.
- Confirm that the Add a New Tool window opens.
Open the tool window from a Workflow:
- In the Administration Portal, select the Content tab.
- Select the Add New button.
- Choose the Workflow option.
- Title the Workflow, and make the other Overview and Details selections.
- Select Save.
- Select Edit.
- Select the Launch Editor button.
- When prompted in the browser, click Open Pinnacle Series Workflow Editor.
- In the Workflow Editor, create a new Process, Task, or Step.
- Right-click the title of the workflow item and select Modify.
- In the Tools section at the bottom of the Modify window, select New.
Then create the tool link:

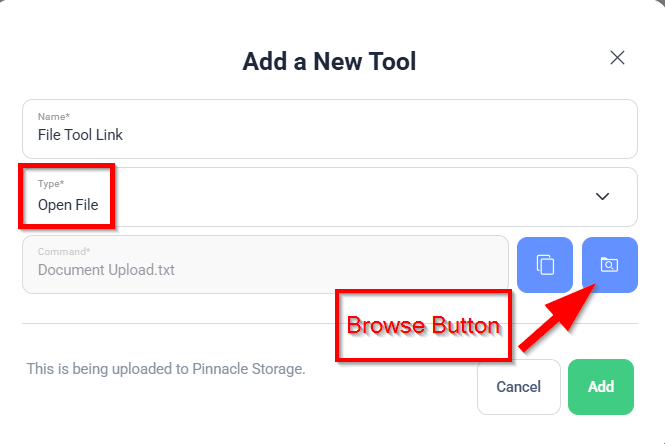

- Enter a name for the tool link.
- Select Open File from the drop-down list under Type.
- Browse to the file or document that you want to link to.
- Select Add when you have finished linking your file.

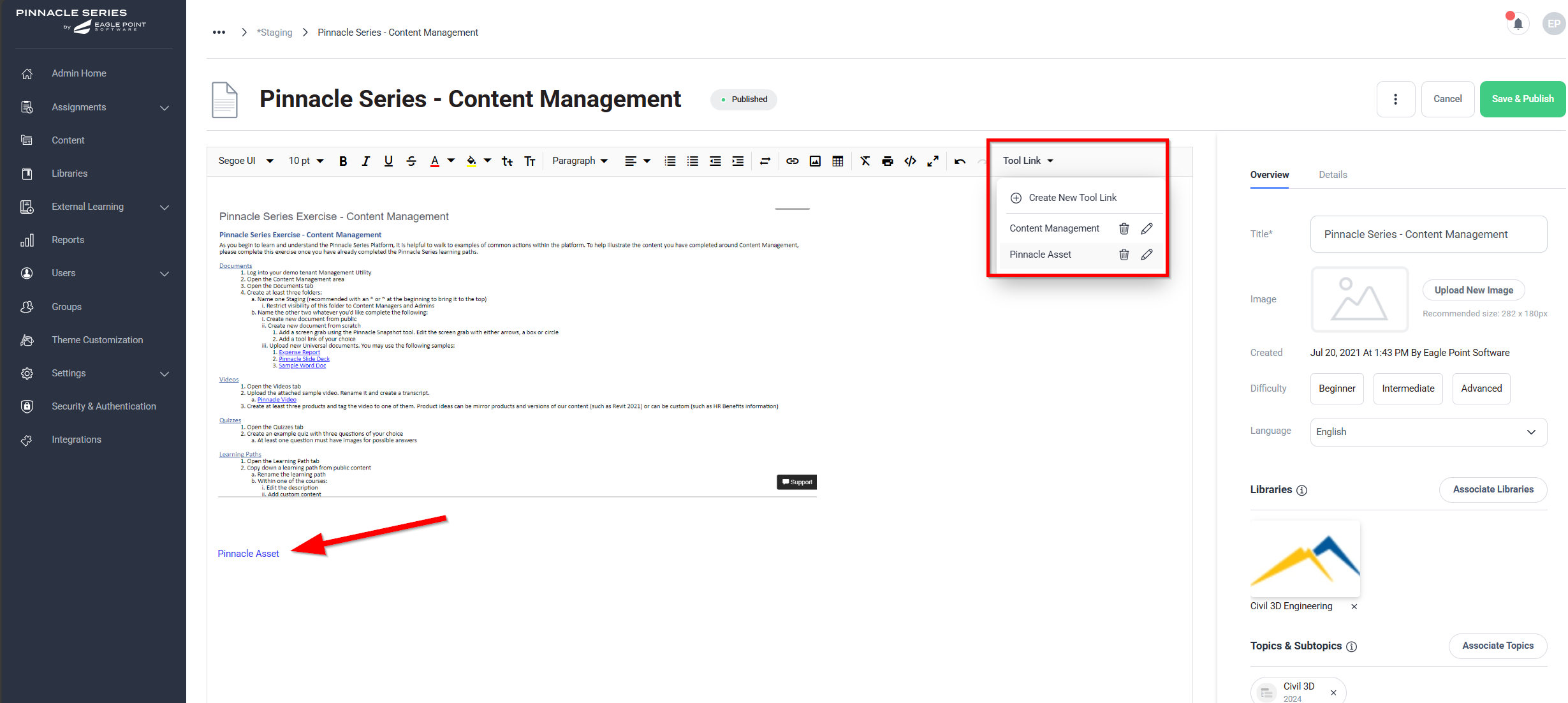

- In the asset description, place your cursor where you want the tool link to appear.
- Select the Tool Link drop-down and click the desired tool link.
- Click Save in the top right to save your changes.
- In the Pinnacle Series portal, click the link in the description and confirm that the associated tool starts.
Helpful Tips
- Once tools have been added to an asset, each tool link can be inserted into the context of the asset description.
- The Workflow Editor may open behind the browser window it was launched from.
- Use the entire collection of tool links to help users be more efficient while remaining on task.
