Applies To:
All users.
Common Causes/Issues:
- You would like to find out where you can access the related learning topics inside the Pinnacle Series platform.
- You would like to view learning links whilst working in your Autodesk software.
Solution Overview:
- Activating the Pinnacle Series Related Learning Topics will keep you better connected to your Pinnacle Series knowledge assets.
- Related Learning Topics provide a convenient way for you to gain immediate access to Pinnacle Series assets relevant to commands you click in your Autodesk products.
-
If you are using AutoCAD, Civil 3D, or Revit, you can activate the Related Learning Topics
to reveal useful assets even when you are not in the Pinnacle Series web portal. -

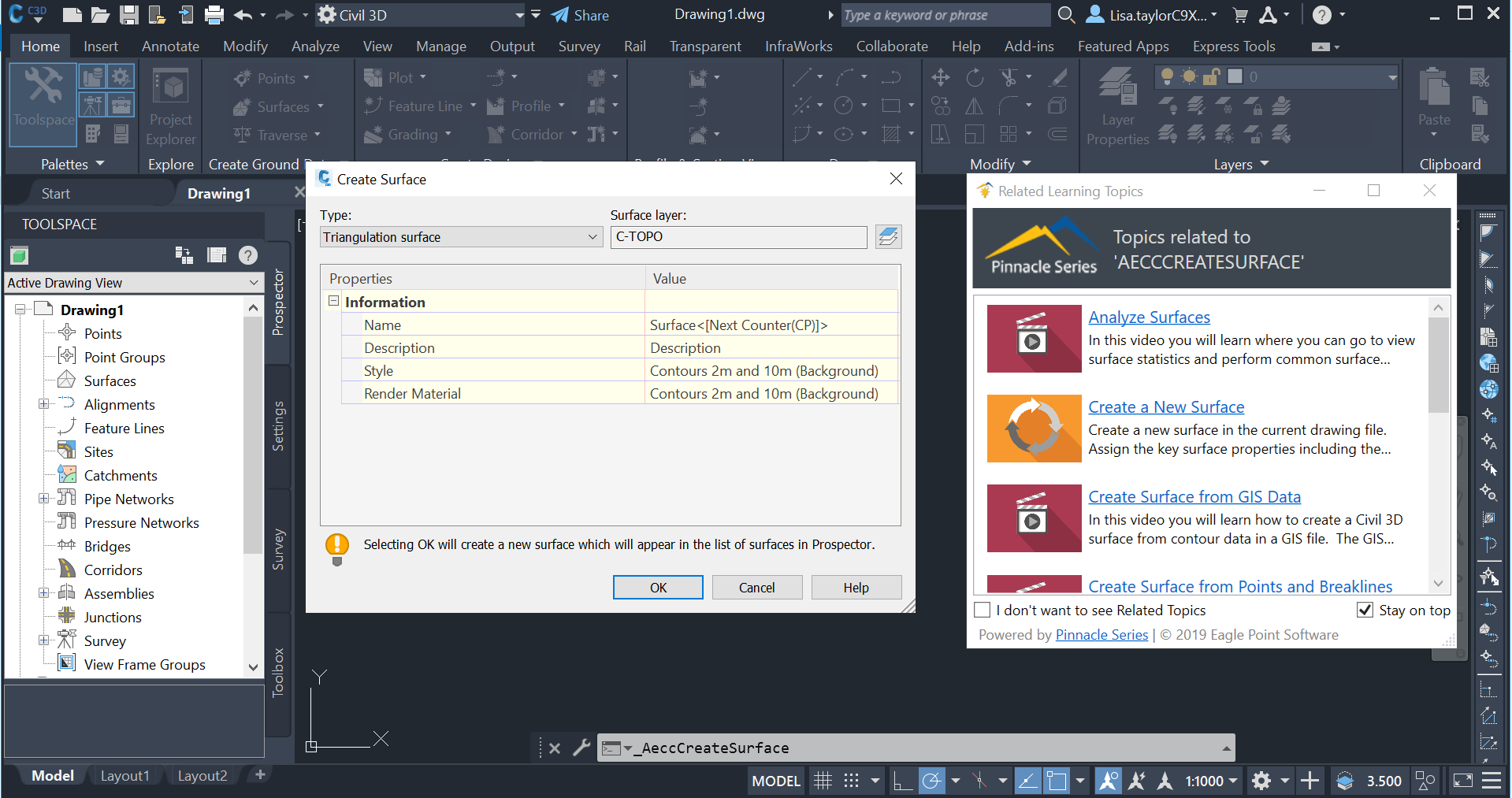

To trigger Related Learning Topics, simply click a command or tool in your Autodesk product
and the Related Learning Topics window will appear on your screen. - The Related Learning Topics will display any Pinnacle Series asset that has been tagged with that tool or feature name.
-
To view an asset, click its title.
- This will open your web browser and take you into Pinnacle Series where you can view the asset.
- When you are finished, you can close your browser and return to your Autodesk product.
-
When another command, or feature, is selected the Related Learning Topics will update,

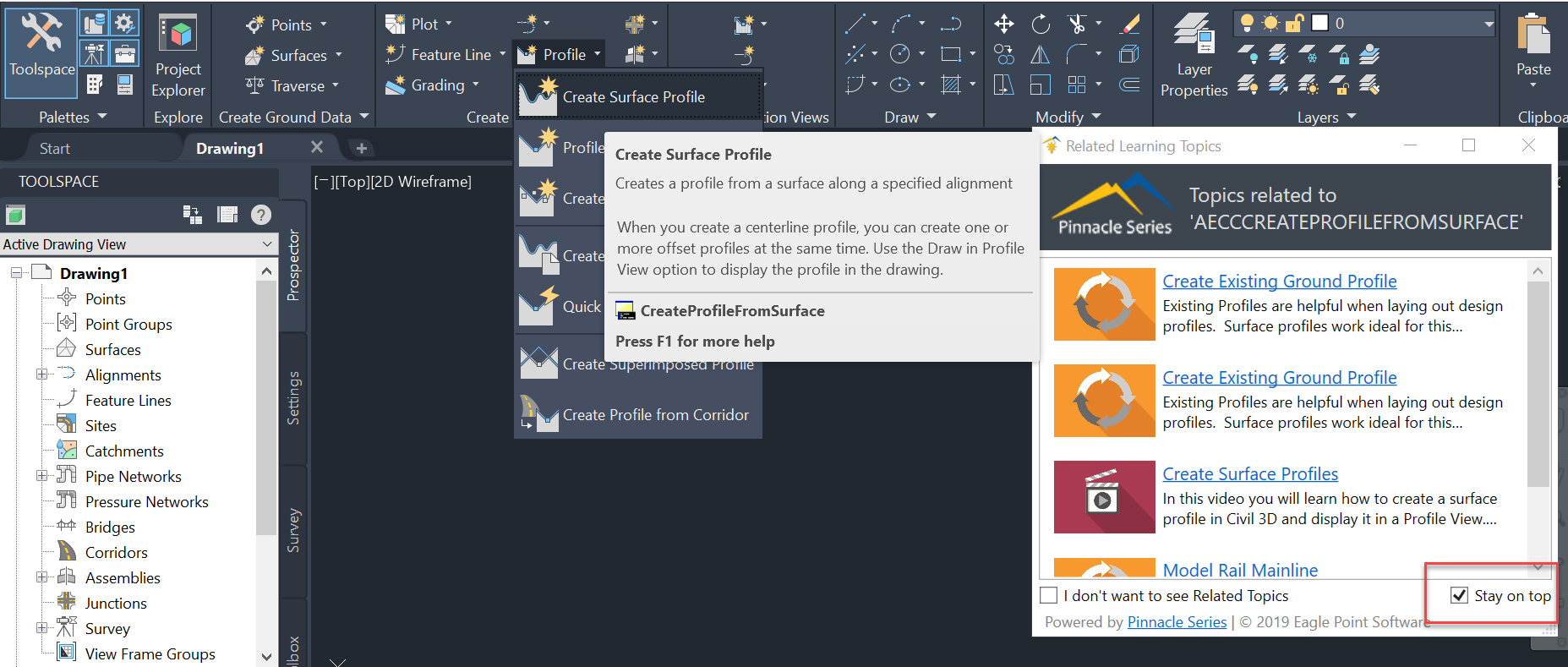

presenting you a new list of assets to assist you with the tool. - To keep the Related Learning Topics in front of other open applications, you can make sure to toggle "Stay on Top".
-

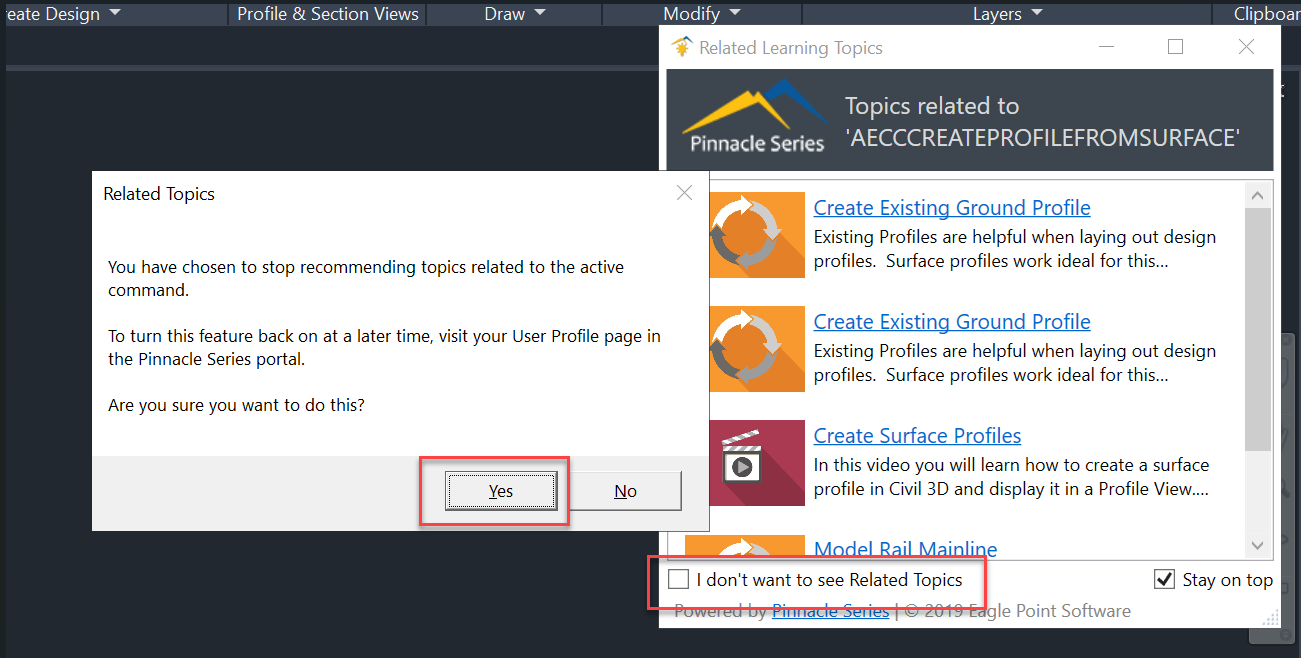

If you would rather not see the Related Topics, you can toggle "I don't want to see Related Topics".
Tactical Solution:
- To enable Pinnacle Series Related Learning Topics, you must activate the User Tools on your device.
- You can do this from the Profile & Settings page.
- Click your user icon in the upper-right corner and select Profile & Settings from the menu.
-

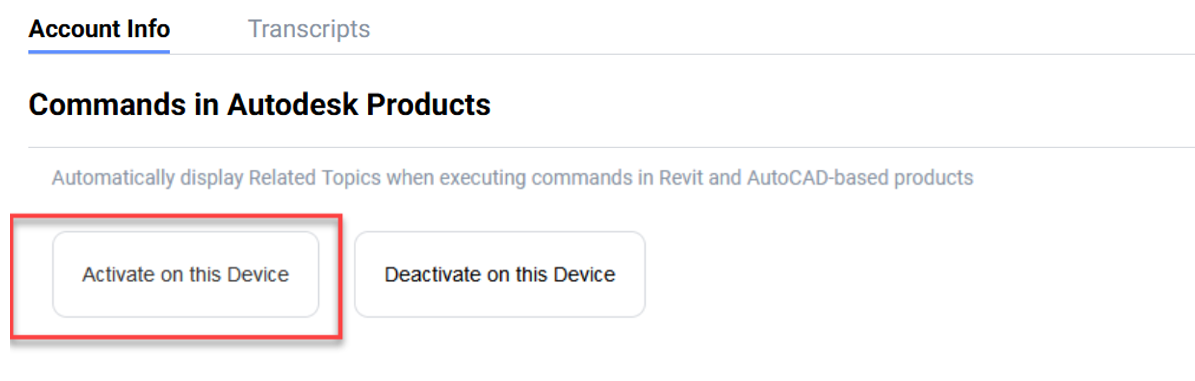

In your User Profile click "Activate on this Device" to initialize the command tools.
- You will get a message confirming the activation of your device.
-
You can close this message.
Important: After installing the user tools, the browser must be fully closed and reopened to activate them. A simple refresh or signing out and back in will not enable the tools.
- The moment you click a tool, or feature, that is associated with a Pinnacle Series asset, you'll see the Related Learning Topics.
-

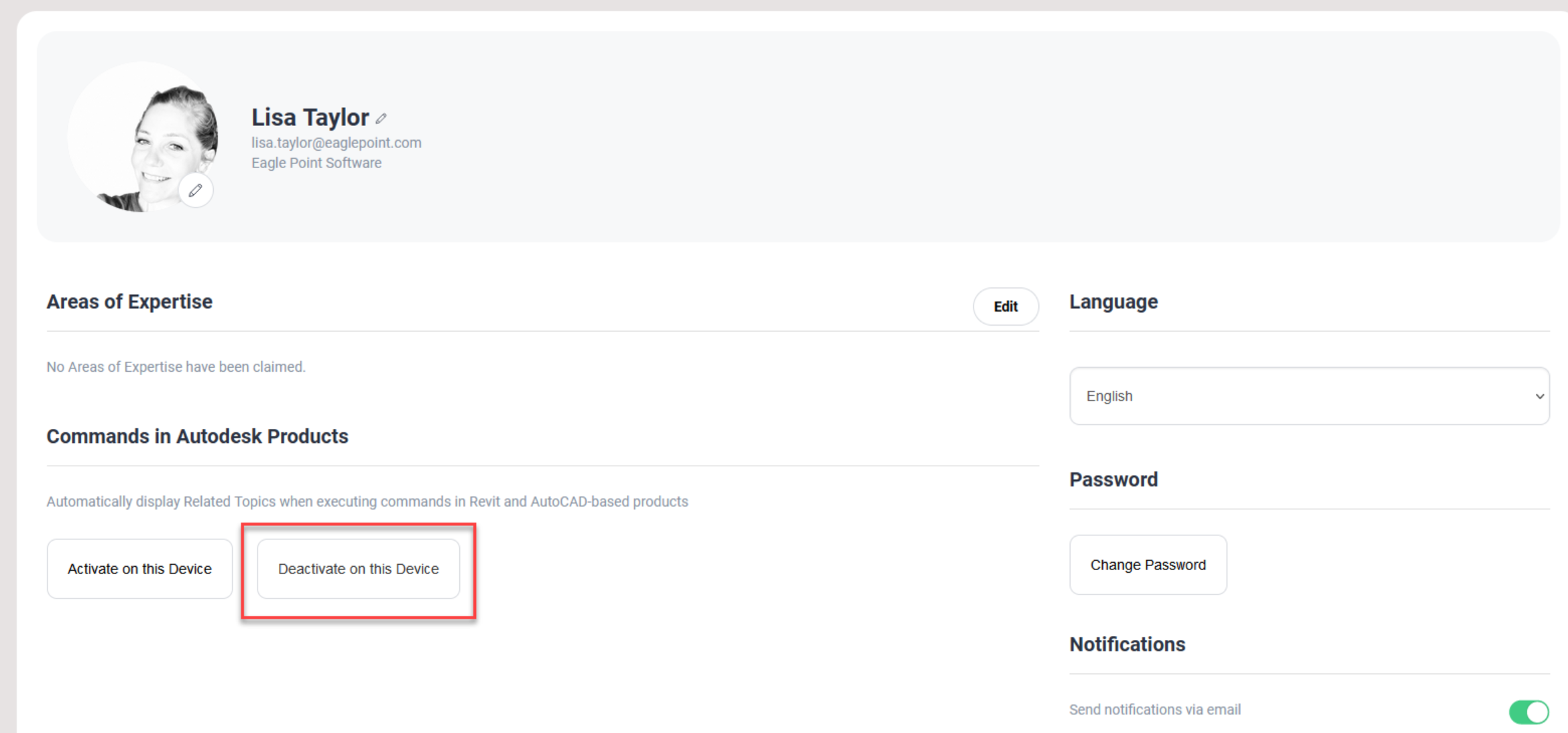

At any time, you can return back to your Profile & Settings page to deactivate the command tools if desired.
Related Pinnacle Series Assets:
Installing Pinnacle Series User Tools
