Applies To:
Content Managers.
Common Causes/Issues:
-
You would like to place a tool link that opens a Pinnacle Series asset to guide users within the context of what they are learning.
Solution Overview:
- A Pinnacle Content link will connect users to another Pinnacle Series asset.
- This can be handy in Workflows when users are looking to reference their CAD standards that reside in a Document.
- Rather than searching for their standards, they have a link that will connect them immediately, within the context of what they are doing.
-
Use the entire collection of tool links to help users be more efficient while remaining on task.
Tactical Rundown:
-

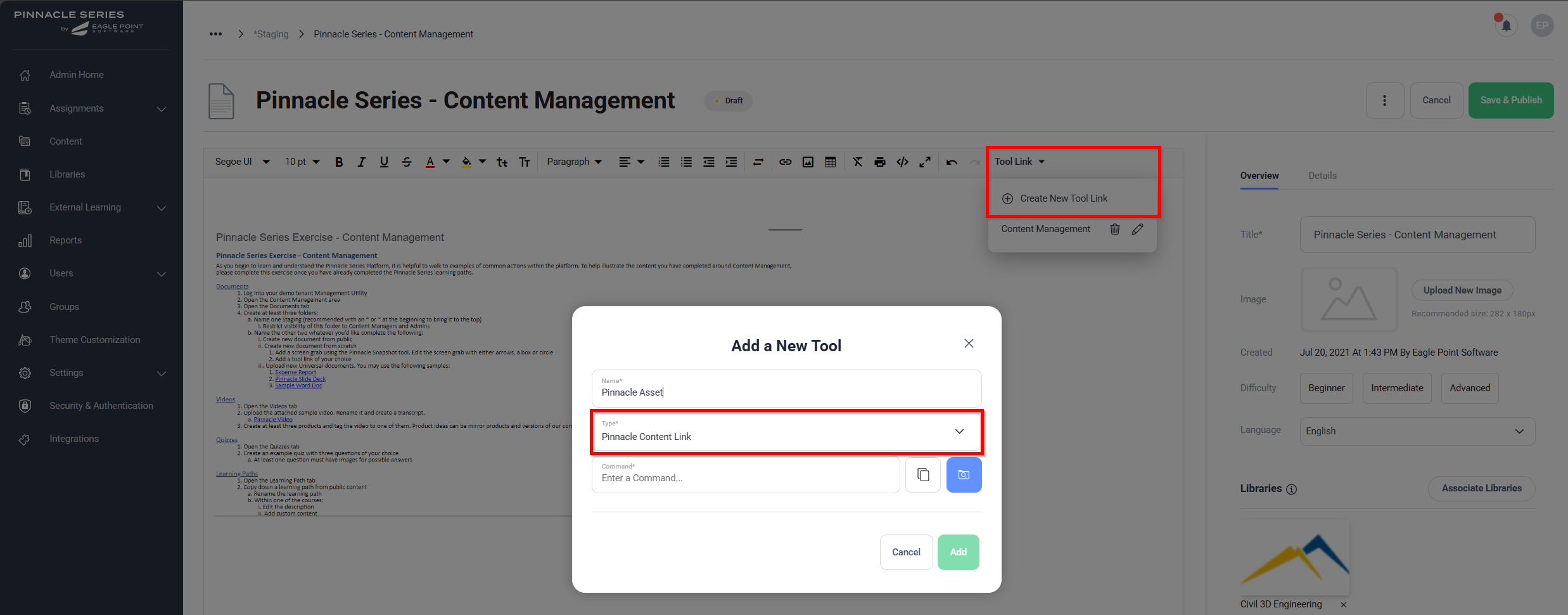

After selecting 'Create New Tool Link' select Pinnacle Content Link from the drop-down menu for 'Type'
-

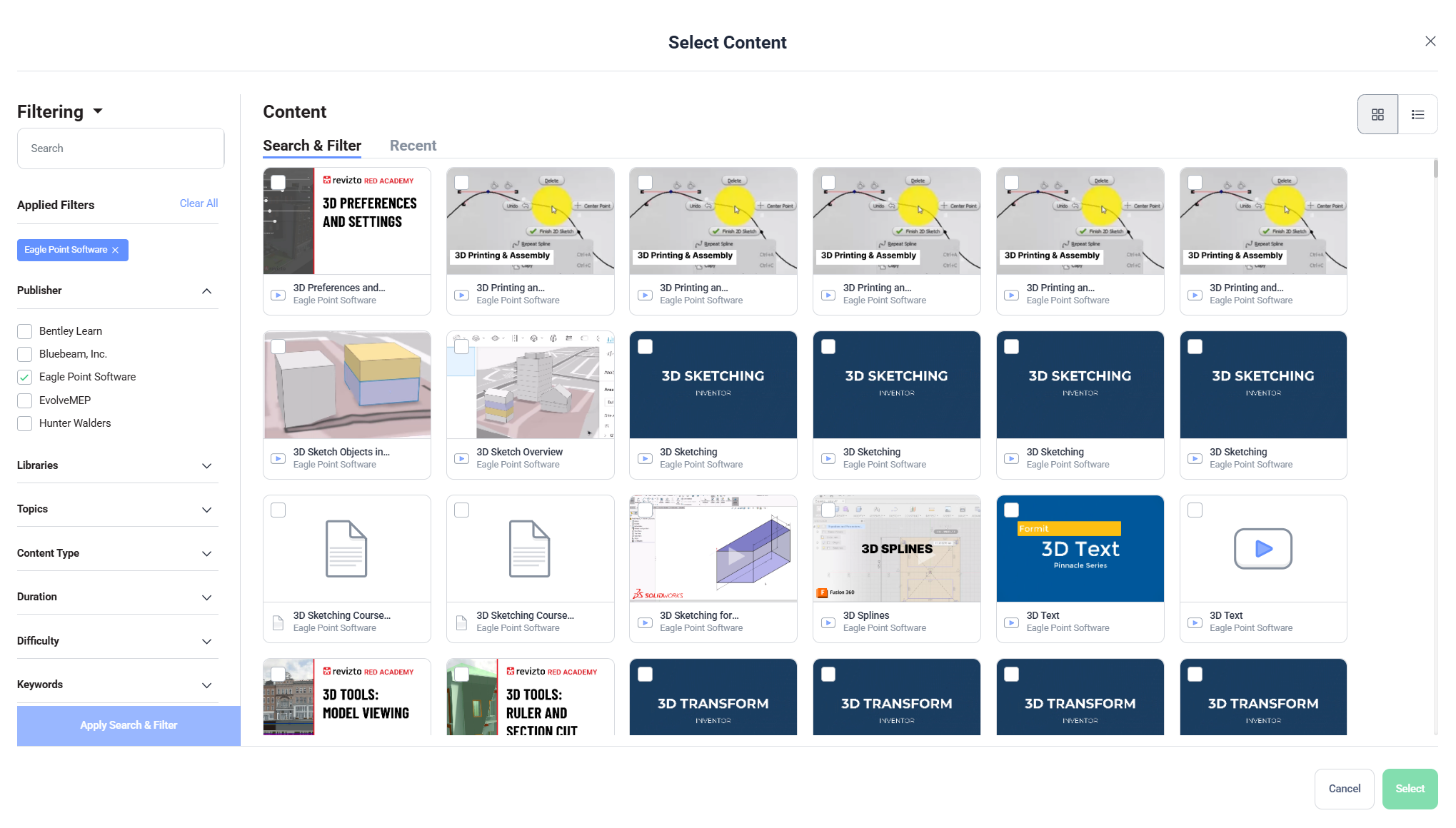

Browse to the Asset from the library of Workflows, Documents, Videos, and Learning Paths by using Filters or Searching. Then press 'Select' in the bottom right to confirm your selection.

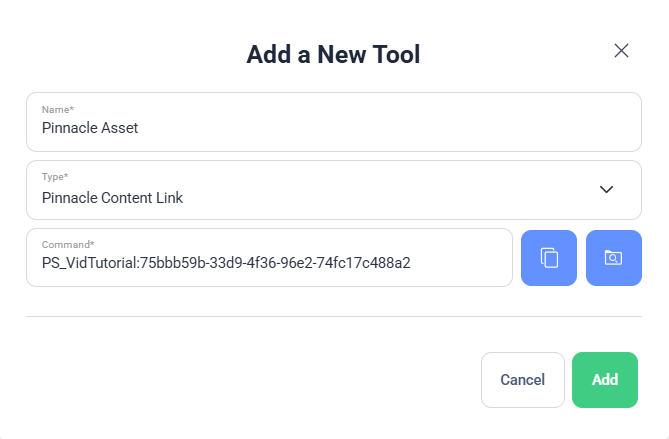

- Click 'Add' on the 'New Tool' pop-up to confirm and add this Tool Link
- Once you have added tools to your asset, you can insert the tool into the context of the description.

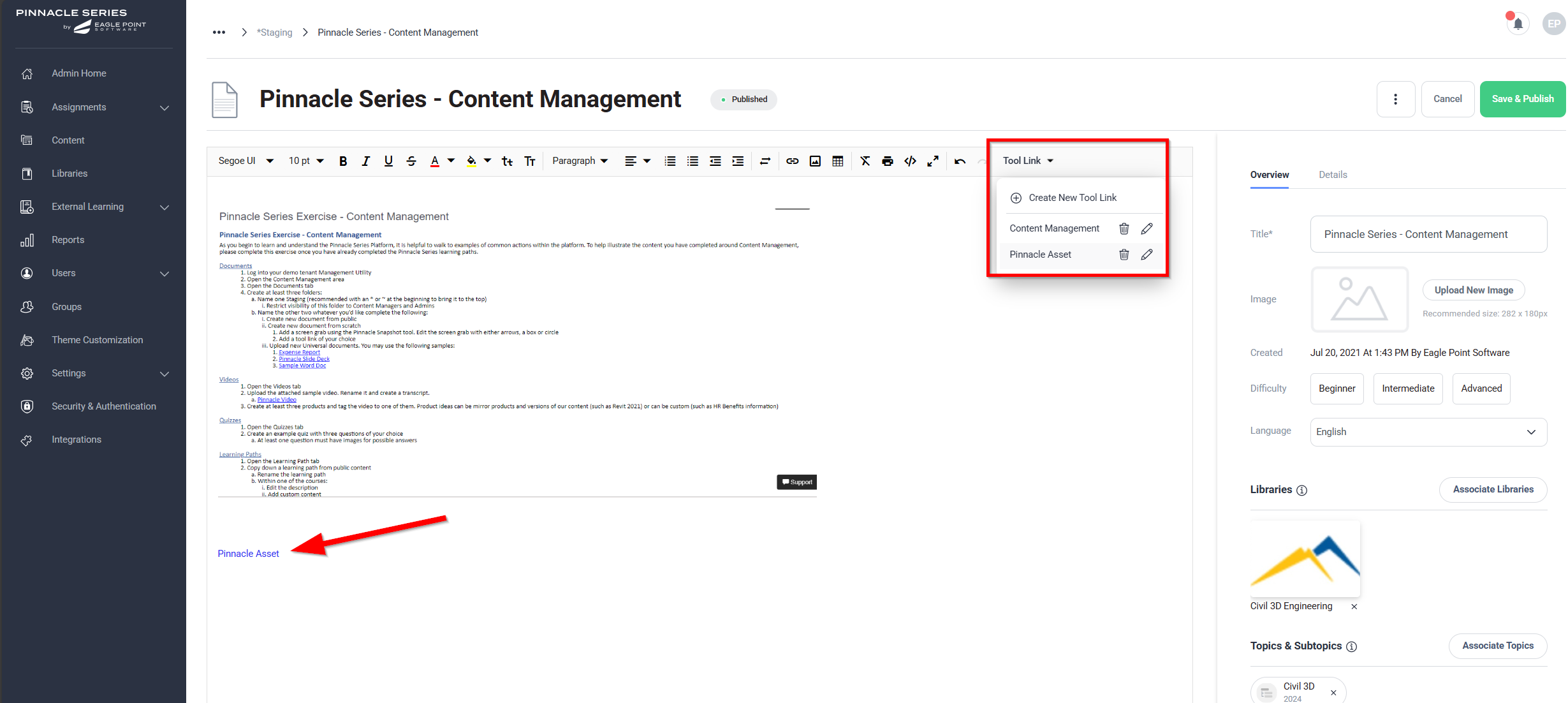

- Place your cursor where you would like to place the Tool link, then select the Tool Link drop-down and click on the desired tool link.
