Managing Azure custom user attributes for Pinnacle Series

Applies To:

Technical Administrators.

Your organization uses Azure AD for user provisioning.
You would like to learn:
- how you can create a custom attribute in Azure AD
- how to map custom attributes to your user attributes inside Pinnacle Series
- how to take advantage of group-based rule sets to automatically match attributes within Pinnacle Series.

For each application, you might have different requirements for the information you want to collect during sign-up. Azure AD comes with a built-in set of information stored in attributes, such as Given Name, Surname, City, and Postal Code.
For an update (June 2022) regarding available attributes please see this article:
User management enhancements in Azure Active Directory
Follow the guidance below to create a custom attribute.

Sign in to the Azure portal as an Azure AD administrator.
Under Azure services, select Azure Active Directory.
In the left menu, select External Identities.
Select Custom user attributes. The available user attributes are listed.
To add an attribute, select Add.
In the Add an attribute pane, enter the following values:
- Name - Provide a name for the custom attribute (for example, "Shoesize").
- Data Type - Choose a data type (String, Boolean, or Int).
- Description - Optionally, enter a description of the custom attribute for internal use. This description is not visible to the user.
Select Create.

The custom attribute is now available in the list of user attributes and for use in your user flows. A custom attribute is only created the first time it is used in any user flow, and not when you add it to the list of user attributes.

To map Azure AD properties to custom user attributes in Pinnacle Series, select Manage on the Map User Attributes menu within the Integrations overview.

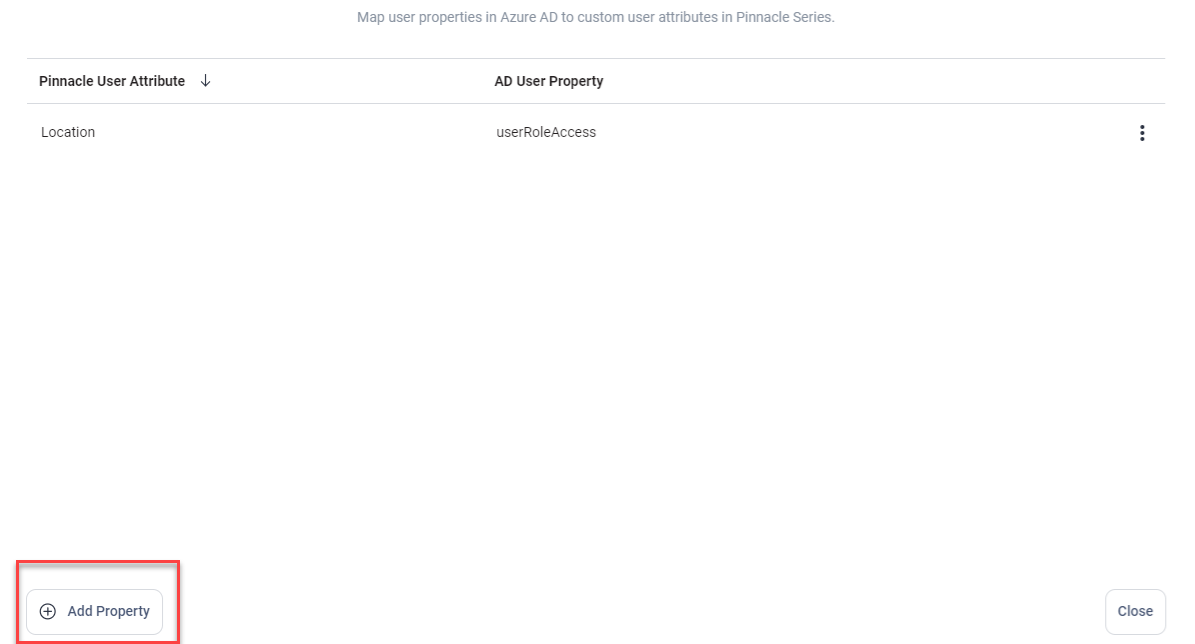

To begin mapping, select the Add Property button within the Map User Attributes menu.

Select an existing Pinnacle user attribute from the corresponding drop-down. If you do not see the required attribute, return to the User Settings menu and define your attribute as needed. Type in the custom property ID (Provide a Name for the custom attribute (for example, "ShoeSize"))
With a Pinnacle user attribute defined, select the AD User Property dropdown. A query of available
AD user properties will be presented.
Choose the appropriate AD property and select Save.
The defined mapping will automatically populate data to the Pinnacle user attribute during your next user synchronization.
If you do not see data populating, check your User Attribute mapping for accuracy and ensure that your users have data present within the AD property in your Azure environment.

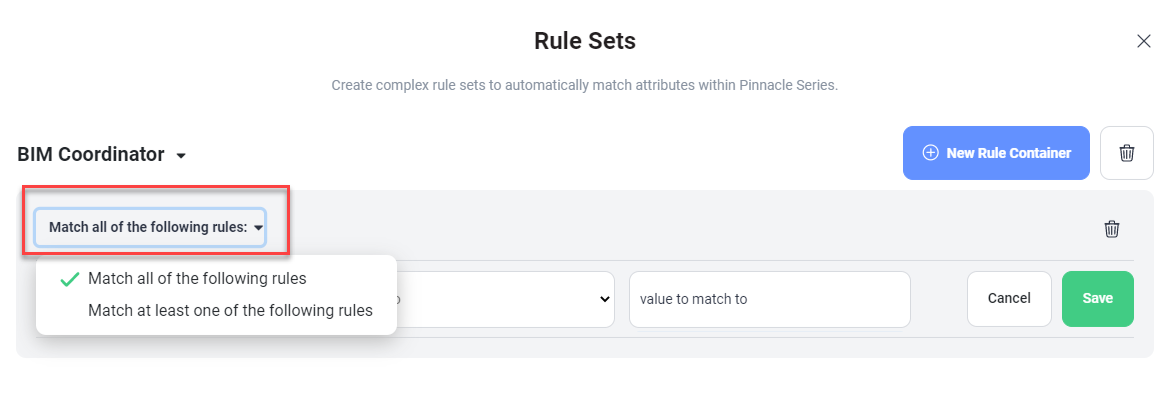

Select rule matching parameters, and choose either:
- Match all of the following rules
- Match at least one of the following rules

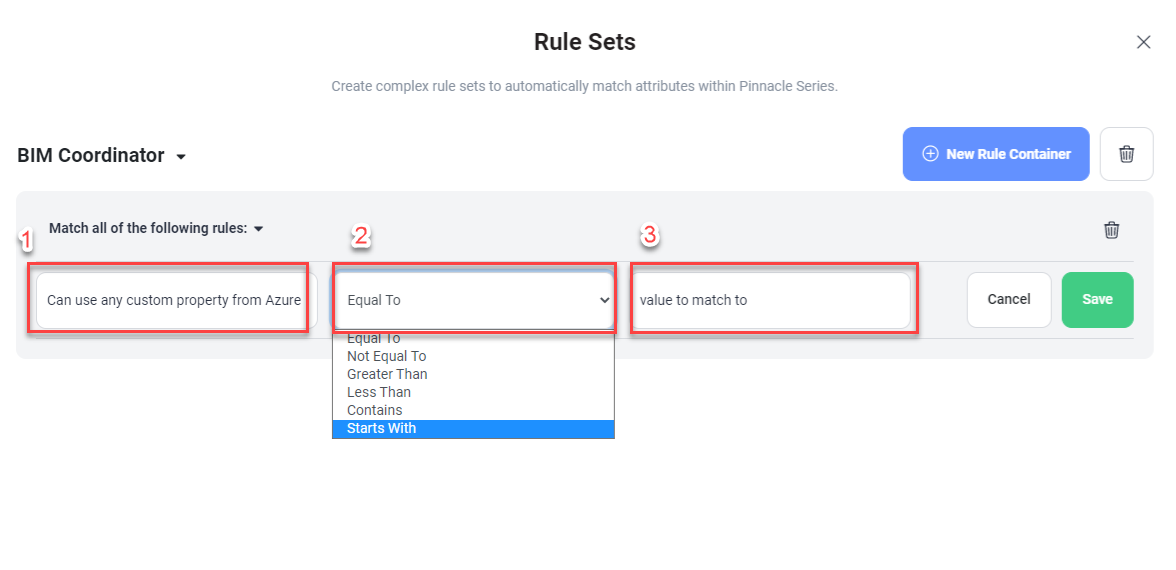

Enter the custom property from Azure (1)
Select the rule condition from the drop-down menu (2)
Enter the Pinnacle attribute that you would like to match the Azure attribute to. (3)
